Part details
Photos, sample parts, dimensions, weight, material and the required exit orientation.
Product route

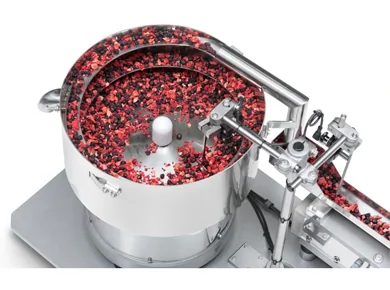

Crown cap feeders
Crown cap orientation systems help present caps correctly before the capping head, reducing misfeeds and keeping the beverage line moving.
Configuration
Configured around the component and downstream machine.
Final specification is confirmed against part samples, target feed rate, orientation requirement, outlet height, available footprint, utilities and control interface.
✓
Sample-based design
Part geometry, material and centre of gravity are assessed before the bowl route is confirmed.
✓
Orientation control
Tooling is used to reject or correct the wrong orientation before the discharge point.
✓
Line integration
Chute, stand, controls and sensor options are matched to the downstream capper or fixture.
Typical specification
Reference specification areas
Exact data is confirmed during quotation because feeder performance is part-specific.
| Specification area | Typical requirement |
|---|---|
| Power | 110/220 V, 50–60 Hz subject to final configuration. |
| Construction | Stainless steel bowl and frame options for factory environments. |
| Suitable parts | Caps, closures, pumps, sprayers, small components or application-specific parts. |
| Feed rate | Customised per part, orientation requirement and downstream equipment. |
| Options | Bulk hopper, level sensor, acoustic cover, anti-static lining, special chute or custom stand. |
Quote checklist
Send these details for an accurate feeder quote
Output and line details
Target parts per minute, downstream machine type and whether the feeder must start/stop with the line.
Site and utilities
Available footprint, discharge height, power, air, noise constraints and operator access requirements.
Need this feeder configured for your part?
Contact Lancing UK with your component details and target output.
Engineering specification
Additional checks for crown cap feeders
These notes add the practical information buyers usually need before Lancing can confirm a feeder route, tooling approach and line interface.
Part geometry and orientation
Crown cap feeders should be assessed with real samples. Lancing will need the component geometry, material, finish, centre of gravity and the exact orientation needed at the discharge point.
View sample requirementsTrack, escape and recirculation
The design route considers cap nesting risk, track width, orientation rejection, chute delivery and capping head compatibility. Wrongly presented parts may need to be rejected, corrected or recirculated before they reach the downstream equipment.
View tooling guideLine interface and controls
The discharge height, chute handover, sensor positions, start/stop signal and PLC interface should be checked before the quotation is finalised.
Integration checklist| Feeder planning point | What to confirm | Why it matters |
|---|---|---|
| Suitable parts | Crown closures and beverage-style cap feeding applications | Confirms that this page owns the orientation and feeding problem rather than the complete packaging machine decision. |
| Target rate | Target parts per minute, acceptable surge and whether the feeder must avoid starving or flooding the downstream machine. | The rate is part-specific and should be proven against the actual component and discharge route. |
| Change parts | Which caps, closures or components must run on the same system and how quickly changeover needs to happen. | Some formats can share tooling; others need dedicated bowls, tracks, rails or chutes. |
| Environment | Noise constraints, static risk, product cleanliness, material finish, coating and operator access. | These factors influence bowl lining, covers, sensor selection, guarding and maintenance access. |
Buyer questions for this route
These answers are based on the feeder information visible on this site and avoid unsupported speed, price or stock claims.
What information is needed for crown cap feeders?
The useful starting point is sample parts, drawings or dimensions, material, weight, required exit orientation, target feed rate, downstream machine details, discharge height, footprint and any control interface requirements.
Can one feeder handle more than one format?
Sometimes, but it depends on how close the parts are in size, weight, shape and orientation behaviour. Multi-format use should be checked with real samples and agreed changeover limits.
What can affect feed rate and reliability?
Geometry, surface finish, weight, nesting behaviour, static, tooling wear, track loading, sensor position, chute handover and the downstream machine demand can all affect consistency.
When is another feeding route more suitable?
If the component tangles, marks easily, has no stable orientation features or needs a very different presentation method, a linear feeder, escapement, hopper, magazine or another handling route may be better.
How should controls be planned?
Agree whether the feeder must start and stop from the downstream machine, whether level sensors are required and whether a sensor or PLC interface is needed for jam, full-track or low-part conditions.
Why are sample trials important?
The bowl tooling and reject route are designed around the actual part. Samples expose mould variation, coating, static, balance and change-part issues that drawings alone can miss.
